How to design a simple LED Circuit

I am out of practice at many things it would seem at the moment...

I recently had to verify a colleague's design and honestly failed miserably.  Things that I consider basic in terms of electronics I didn't see and couldn't quickly do.
To that end let us start from a simple area and attempt to cover as many aspects as possible...at least that way I will hopefully improve in my skills and prevent others from making similar mistakes.

I'm going to show a simple circuit that I was presented with...I'll be honest I struggle to visualise circuit operation from a schematic...it's probably why I struggle with the task of assessing designs.

Simple LED Circuit

Lets try to analyze the circuit and explain how it works.  The circuit's function is to indicate which position the switch SW1 is in to the operator.  We have two different light emitting diodes (LEDS) connected via (SW1) a double pole single throw switch to a 5 Vdc supply with two 4k7 Ohm resistors and a 10 k Ohm Resistor.

When the switch (SW1) is in the position shown above LED D2 is supposed to be illuminated and a signal (at 5 Vdc) is also passed back to a microcontroller GPIO configured as an input (not shown here) via the node labelled SW1.  When the switch is in the alternative position the LED D1 is supposed to be illuminated and at the same time a signal or rather lack of signal (0 Vdc) is passed back to the microcontroller GPIO configured as an input.

This method of connecting LEDS is known as reverse parallel - I'd actually not heard the term before...I had seen it before but not had it described that way...

So why is this circuit not particularly well designed?  There are a couple of reasons...which I'll be honest I did not pick up on during my assessment.  I made assumptions that the designer had performed calculations and checks to ensure the values selected were correct.

The first reason is with respect to current.  In order to cause an LED to go into illumination normally at least 16 mA of current is required. How much current is flowing in the circuit with respect to D2?

Well the forward volt drop of the LED D2 is not stated so we don't actually know...lets fix that by supplying the datasheet:

C503B-BCS-CV0Z0461 Blue Light emitting diode datasheet

D2 is a 5 mm through hole LED with a wavelength of 470 nm.  It has a typical forward voltage (VF) of 3.2 Vdc when the forward current is at 20 mA.

We can now perform a simple calculation:

(Supply voltage - Diode forward voltage) / Resistor (R2) = Current flowing in LED D2 part of the circuit

(5 Volts - 3.2 Volts) / 4700 Ohms = 0.00038297872 A or 383 µA (micro-Amperes)

In order to get an LED to illuminate at normal brightness there should be milli-Amperes - I normally aim for 16 mA.  So in the circuit shown above with the switch in this position the LED D2 will not be illuminating brightly...I suspect it won't even be visible to the human eye.

The same issue is present with LED D1, here is the datasheet:

L-53SYD Yellow Light Emitting Diode Datasheet

D1 is a 5 mm through hole LED with a wavelength of  590 nm.  It has a typical forward voltage (VF)  of 2 Vdc when the forward current is at 20 mA.

(Supply voltage - Diode forward voltage) / Resistor (R1) = Current flowing in LED D1 part of the circuit

(5 Volts - 2 Volts) / 4700 Ohms = 0.00063829787 A or 638 µA (micro-Amperes)

If again the aim was to illuminate the LED D1 (16 mA) then when the switch (SW1) is in the alternative positon the LED D1 will not be illuminated brightly at all...

So how do we resolve this issue?  We could try changing the resistor values (R1 and R2) for a lower value...

The standard formula for calculating the current limiting resistor for an LED is:

Current Limiting Resistor (Rlimit) (Ohms) = [Supply Voltage (VS) -  Diode Forward Voltage (VF)] /                                                                                                Diode Forward Current (IF)
Supply Voltage (VS) = 5 Vdc
Diode Forward Voltage (VF) = 3.2 Vdc (Blue LED)
Diode Forward Current (IF) = 16 * 10^-3 Amps or 16 mA

Therefore:

Current Limiting Resistor (Rlimit) (Ohms) in this case R2 = (5 Volts - 3.2 Volts) / 16 *10^-3 Amps

Current Limiting Resistor (Rlimit) (Ohms) = 112.5 Ohms for the Blue LED current limiting resistor.

For the current limiting resistor for D1 we have:

Current Limiting Resistor (Rlimit) (Ohms) in this case R1 = (5 Volts - 2 Volts) / 16 *10^-3 Amps

Current Limiting Resistor (Rlimit) (Ohms) = 187.5 Ohms for the Yellow LED current limiting resistor.

As 112.5 Ohms and 187.5 Ohms are not standard values for resistors one would probably use a 100 Ohm resistor and a 180 Ohm resistor.

The other calculation that should be made when designing circuits with resistors present is to ensure that the resistor power rating is suitable for the amount of power that will be present in the circuit.  Resistor life-time is reduced and unnecessary heat is generated when too much power is conducted through resistors.

The formula for calculating the power in a component is an application of Ohms Law:

Power (Watts) = Voltage (V) * Current (I) or

Power (Watts) = (Current * Current) * Resistance or

Power (Watts) = (Voltage * Voltage) / Resistance

We can apply any version of Ohms law to calculate the information required.  I have decided to use

Power (Watts) = (Current * Current) * Resistance

Power (Watts) in R1 =  (16*10^-3 * 16*10^-3) * 180 Ohms

Power (Watts) in R1 = 0.04608 Watts or 46.08 mW

Power (Watts) in R2 =  (16*10^-3 * 16*10^-3) * 100 Ohms

Power (Watts) in R2 = 0.0256 Watts or 25.6 mW

So to ensure that the power rating for the resistors is correct we should use 100 mW or quarter watt (250 mW) rated resistors.

There are still issues with the circuit as shown above however; The circuit is kind of wasteful...When the switch is in the position shown above there will always be current flowing in resistor R1 even though LED D1 is not illuminated.  With the switch in the opposite position the resistor R2 will still have current flowing through it even though LED D2 will not be illuminated.  Why have current flowing in a resistor for no purpose...It would be better to redraw the circuit in a different way but still achieve the same circuit function.

It would also (in my opinion) be better to redraw the circuit and do away with the reverse parallel LED connections...mostly because I find it hard to visualise the circuit...

Here is the circuit which was redesigned by my colleague having had some feedback (not from me):

Improved Circuit Design

The circuit's function is still to indicate which position the switch SW1 is in to the operator.  We have a 5 Vdc supply connected to a blue LED (D2) which in turn is connected to a 120 Ohm resistor (R1) and via (SW1) a double pole single throw switch, to ground completing the circuit.  With the switch SW1 in the alternative position we have the 5 Vdc supply connected to a yellow LED (D1) which is in turn connected to resistor (R2) and via switch SW1, to ground completing the circuit.

A signal is also passed back to a microcontroller GPIO configured as an input (not shown here) via the node labelled Controller SW1.  When the switch is in the first position the LED D2 is illuminated and at the same time a signal  (5 Vdc) through resistors R3 (10 k Ohms) and R58 (1 k Ohms) is passed back to the microcontroller GPIO input.

When the switch (SW1) is in the second position LED D1 is illuminated and the signal passed back to the microcontroller is 0 Vdc as the  R3 (10 k Ohms) and R58 (1 k Ohms) are now connected to ground as well as the microcontroller GPIO input as the input impedance of a GPIO on a microcontroller is normally 100 k Ohms.  It is a standard method of reading the state of a switch position with a microcontroller.

The current limit on each of the LEDS can be calculated for completeness:

Current limit in LED D1 (Yellow LED) = (Supply voltage - Diode forward voltage) / Resistor (R2)

(5 Volts - 2 Volts) / 560 Ohms = 0.00535714286 A or 5.357 mA (milli-Amperes)

Current limit in LED D2 (Blue LED) = (Supply voltage - Diode forward voltage) / Resistor (R1)

(5 Volts - 3.2 Volts) / 120 Ohms = 0.015 A or 15 mA (milli-Amperes)

It seems a little odd to me that the value of R2 was chosen to be 560 Ohms...that seems a little high and will cause the yellow LED to be less visible when in operation...

The power rating for the resistors can also be recalculated:

Power (Watts) in R2 =  (5.357*10^-3 * 5.357*10^-3) * 560 Ohms

Power (Watts) in R2 = 0.01607057144 Watts or 16 mW (milli-Watts)

Power (Watts) in R1 =  (15*10^-3 * 15*10^-3) * 120 Ohms

Power (Watts) in R1 = 0.027 Watts or 27 mW (milli-Watts)

Therefore a 100 mW rated or 250 mW rated resistor would be ok to use in either position...

As the circuit has been redesigned there are no conditions where unnecessary current is flowing in any of the resistors and we still have the circuit function needed...When the circuit is constructed it should work perfectly.

When designing LED circuits from now on I will always try and do the following:

1. Obtain the datasheets for any and all components to be used.  For LEDS pay particular attention the electrical characteristics: Forward Voltage (VF), Forward Current (IF), maximum voltage (VMAX) and maximum power.

2. Calculate current limiting resistor needed for the appropriate brightness by reading the datasheet and obtaining a figure for the current at the appropriate brightness...it may be shown in a graph.  Use the formula:

Current Limiting Resistor (Rlimit) (Ohms) = [Supply Voltage (VS) -  Diode Forward Voltage (VF)] /                                                                                                Diode Forward Current (IF)

3. Calculate the power flowing through the current limiting resistor and select a suitably rated component.

4. Choose a suitable resistor tolerance...in this case a 5% resistor will probably be fine.

4. Get a friend or colleague to check your circuits <slight smile>.

5. It often helps to simulate circuits but only when the correct information is provided.  It is possibly better to perform the calculations on paper as it will enforce research into the requirements.

6.  Make sure the circuit meets the requirements...If the requirements aren't known then set them before attempting to perform the design...

In writing and researching this blog post I looked at the following website for inspiration:

https://www.ngineering.com/led_circuits.htm

Apologies for the long post - hope this was helpful - Langster!

Product Review - Seeed Studio's new STEAM Grove Beginner Kit For Arduino

I was recently contacted by Seeed Studio to see if I would be happy to review their new Grove Beginner Kit for the Arduino.  I have been a customer of Seeed Studio in the past and I'm always happy to review kit.

About Seeed Studio

Seeed is the IoT hardware enabler providing services over 10 years that empower makers to realize their projects and products. Seeed offers a wide array of hardware platforms and sensor modules ready to be integrated with existing IoT platforms and one-stop PCB fabrication and PCB assembly service. Seeed Studio provides a wide selection of electronic parts including Arduino  Raspberry Pi and many different development board platforms  Especially the Grove System, which help engineers and makers to avoid jumper wire problems and connectivity issues. Seeed Studio has developed more than 280 Grove modules covering a wide range of applications that can fulfil a variety of needs.

DISCLAIMER: I have not been paid to write this review, however I was sent the product free of charge.  My comments and opinions are my own, based upon my experience.  I am not affiliated or paid by Seeed Studio or anyone else to review products.

The Grove Beginner Kit For Arduino was sent to me via DHL in three days!  I was contacted to see if I would be happy to perform the review on Wednesday and placed my order Thursday and had the product in my hands the following Monday.  If nothing else, Seeed Studio's shipping department are excellent as are DHL!

First impressions of the packaging are excellent and as to be expected from Seeed.  I particularly liked to the code reference on the inside of the lid and the QR code to the tutorials page on the back.

The Top view of the Packaging

The inside of the box and the PCB itself.

The back of the box.

The Grove beginner kit and the external modules.

Lets power up the board and see what it does 😀

The board is powered from a microUSB connector on the arduino compatible PCB in the centre of the board.

As soon as the board is powered up the test sketch that is already present in the microcontroller drives the small OLED display connected via I2C in the middle left section of the board and reads the signal from the light sensor in the top right section of the board, connected to the A6 analogue input.  It gives confidence that the components are all working immediately.  In ambient light the display showed a value of 326 and when the sensor was covered the reading was 15.  Excellent visual feedback.

In a very unusual step for me I then went to find the instructions!  As an engineer I normally just like to connect everything up and start messing with things until I get stuck but in this case I went straight to Seeed's product page:

Grove Beginner Kit Product Page

From reading the page quickly it has links to all of the information concerning the Grove beginner kit so I won't reproduce the information here.  If you need to know how one of the modules is connected or require the schematic diagram and technical information it's all on this page.

The page recommended new users to look at the Geppetto online editing environment which I'll be honest I had not heard about.  Here is the web address:

https://geppetto.seeed.neostix.com/#!/dashboard/

It looks like a way of configuring different Grove Sensor modules and helpfully there is a pre-made template for the Grove Beginner Kit.

I also found the wiki for the Grove Beginner Kit:

https://wiki.seeedstudio.com/Grove-Beginner-Kit-For-Arduino/

Having read through the Wiki it gives more information about the unboxing demo.  By pressing the button in the bottom left corner it is possible to see the LED in the top left corner light up.  By pressing and holding the button you can see the LED flash at different rates.

By pressing and holding the button for a long period of time the OLED display changes state and displays the current demonstration program.  By manipulating the potentiometer you can scroll through the various tests and see each device tested which is very useful.

The sound test didn't seem to do much although it did give an audible bleep from a long button press.  Having played with it a little further, the demonstration is taking input from the electret microphone and providing a volume level output on the OLED Display.  By tapping the microphone you can see the sound level change considerably.

The temperature and humidity test worked well and gave the current temperature and humidity on the OLED display.  Heating up the blue sensor did make the temperature change.

The pressure sensor test did give a readout although I think I need to calibrate mine as it gave a reading of 100830.00 Pa which would make my house somewhere on the side of a mountain which isn't true!

The accelerometer sensor test program worked and the animation on the OLED display was very cool.  Again I think calibration is in order but just getting a response straight away is very useful.

Demonstration programs are all very well and useful for proving function but what I always look for in a development board is how I can use it.  In particular I want to be able to learn how to use the sensors breakouts to my own requirements.

The wiki shows that the board can be used easily with the arduino IDE.  That's good as I have the IDE already installed and ready to go.

I loaded up the Arduino IDE and selected the Arduino Uno as my board and selected the COM port which was already detected - I didn't need to install any drivers as Windows had already installed everything for me.

Looking at the Wiki page I found the pre-written code for flashing the LED once a second.  I cut and paste the code straight into the IDE and pressed upload.  Within seconds the LED was flasing every second, as expected.

There are several other examples already written and ready to go.

Basically if I were looking to teach basic electronics and how to interface sensor breakout boards with an arduino uno compatible micro-controller I would purchase several of these boards.  The examples provided work perfectly and unlike separate modules and development boards nothing can be easily lost or removed.  One of the biggest complaints from teachers and students with teaching electronics is that parts go missing and get lost or broken or tidying up after the class takes as long as teaching the class.  With this system both of those problems are solved. The price of the board at $19.90 or £15.38 is incredibly reasonable.  I don't really have any negative comments to make about this product and that is incredibly unusual for me!

This is a bit of a change from my usual posts but hopefully someone will find this useful - take care everyone - Langster!

More work with the Venturi Tube (Mark 4)

In order to test the latest venturi tube properly I have had to recalculate the areas of the different tube sections.  I performed several calculations to find out the areas of the first and second sections of the tube.

2D Cross Section of the Venturi Tube Design (Mark 4)

The blue shaded area is a cylinder.  The formula for calculating the cross sectional area of a cylinder is:



The area of the blue shaded section is therefore:

Which in metres is 0.0138590478.

The area of the red shaded section is a conical frustrum.  The formula for calculating the area of a conical frustrum is (really complicated!) :



I used an online calculator:

https://www.calculatorsoup.com/calculators/geometry-solids/conicalfrustum.php



Which in metres is 0.00189862567

The red and blue shaded areas combined make up A1:



The grey shaded section is a cylinder. Its cross sectional area (A2) is therefore:



We can now apply the formula for the venturi tube:

We will of course just insert these values into the previously written arduino code.

One of the requirements for this project is to display real time graphs on a small graphical display.  The display I intend to develop with has not arrived yet. In preparation I thought it would be a good idea to look at using Python and matplotlib.

I have been playing with Python and installed Python 3.8.2 and got it added to my path (Windows 10).  I then installed the matplotlib (library for plotting graphs) and watched a few youtube videos and read some tutorials.

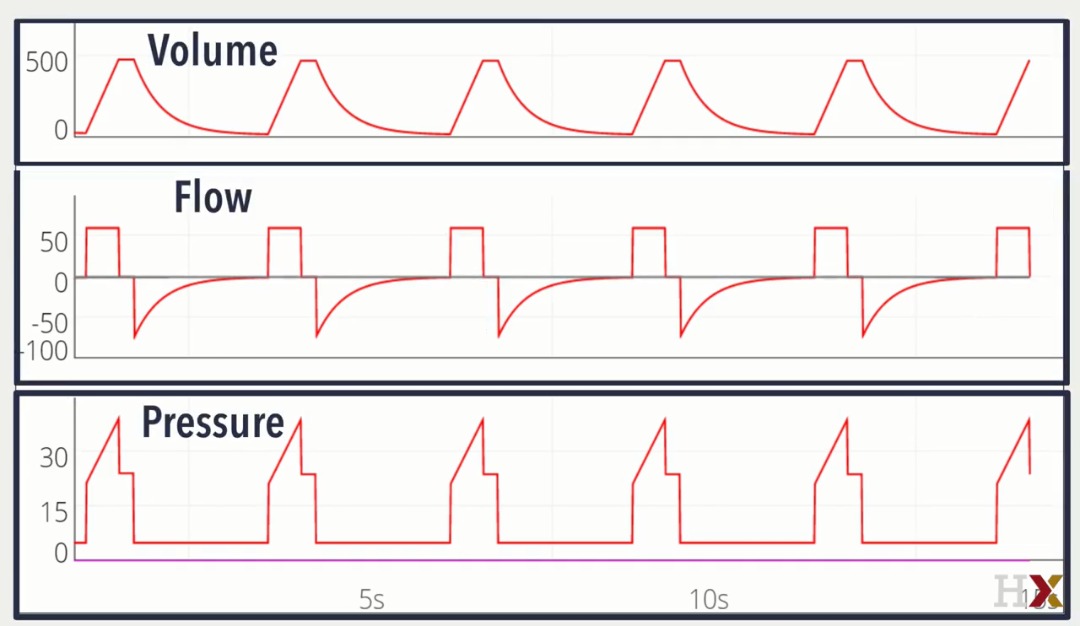

I need to create these graphs:
